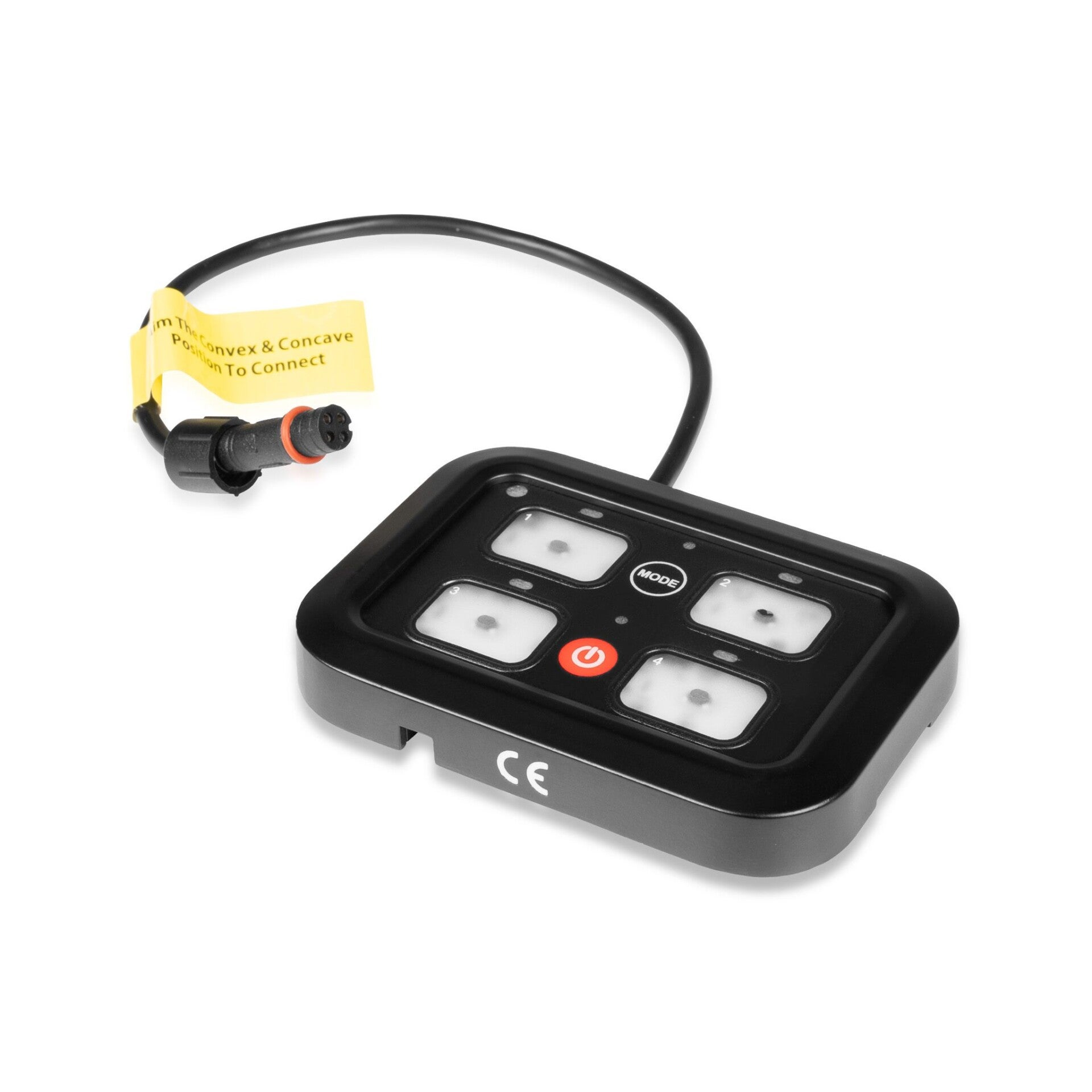

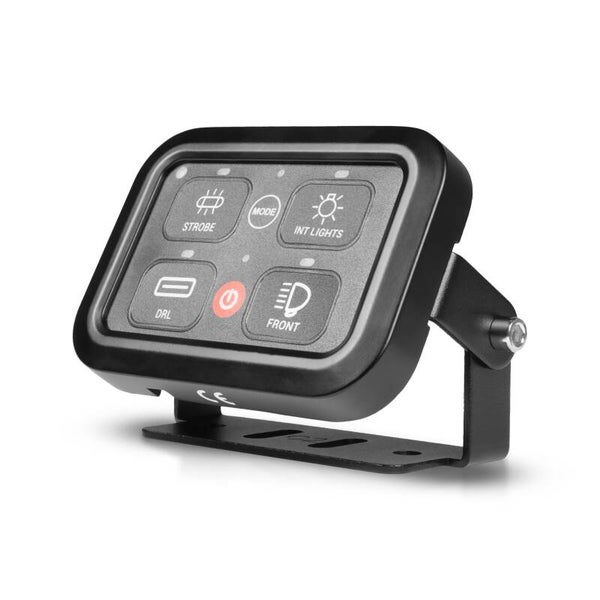

Switch Controller PURELUX Multi-switch Dashboard Controller, 4 button, 10-30V

A very versatile, RGB-backlit switch panel for controlling 4 different devices from the same place. Excellent e.g. for controlling the lights of a work machine, truck or SUV.

The Purelux Multi-Switch Dashboard Controller is a very versatile and convenient switch panel for controlling four different electrical devices (lights, beacons, engine fan or even a seat heater). With the help of the switch panel, you can e.g. in the work machine, you can control the front, rear and side work lights as well as the beacon separately, and the switches for all lights are conveniently in the same place. The lights can be turned on and off individually, and with the switch in the middle, all devices installed behind the panel can be turned off at the same time. All lights connected to the switch panel (and other devices as well) can be turned on either steadily (i.e. turn the button on and off with another click), momentarily (the light turns on when the button is held down) or flashing.

The switch panel has an RGB backlight that automatically adjusts to the brightness of the environment, which can also be turned off by pressing the "Mode" switch once. A total of 45 different picture stickers and five black, self-cutting stickers for marking the switches are included. In this way, the switch intended for each different device or light can be marked to prevent confusion. Thanks to the backlight, the symbol on the switch shines clearly even in the dark.

From the switch panel, all the lights connected behind it can be made to light up either steadily, momentarily (by pressing the button at the bottom) or flashing. The function can be changed by quickly pressing the Mode button in the middle of the panel twice, after which the led indicators above the switch start flashing. After that, press the switch whose function you want to change. This way, for example, a separate flasher relay is not needed to make the lights flash! In addition, the panel is equipped with a convenient memory function, i.e. it turns on the lights in the same mode that was used before turning off the power.

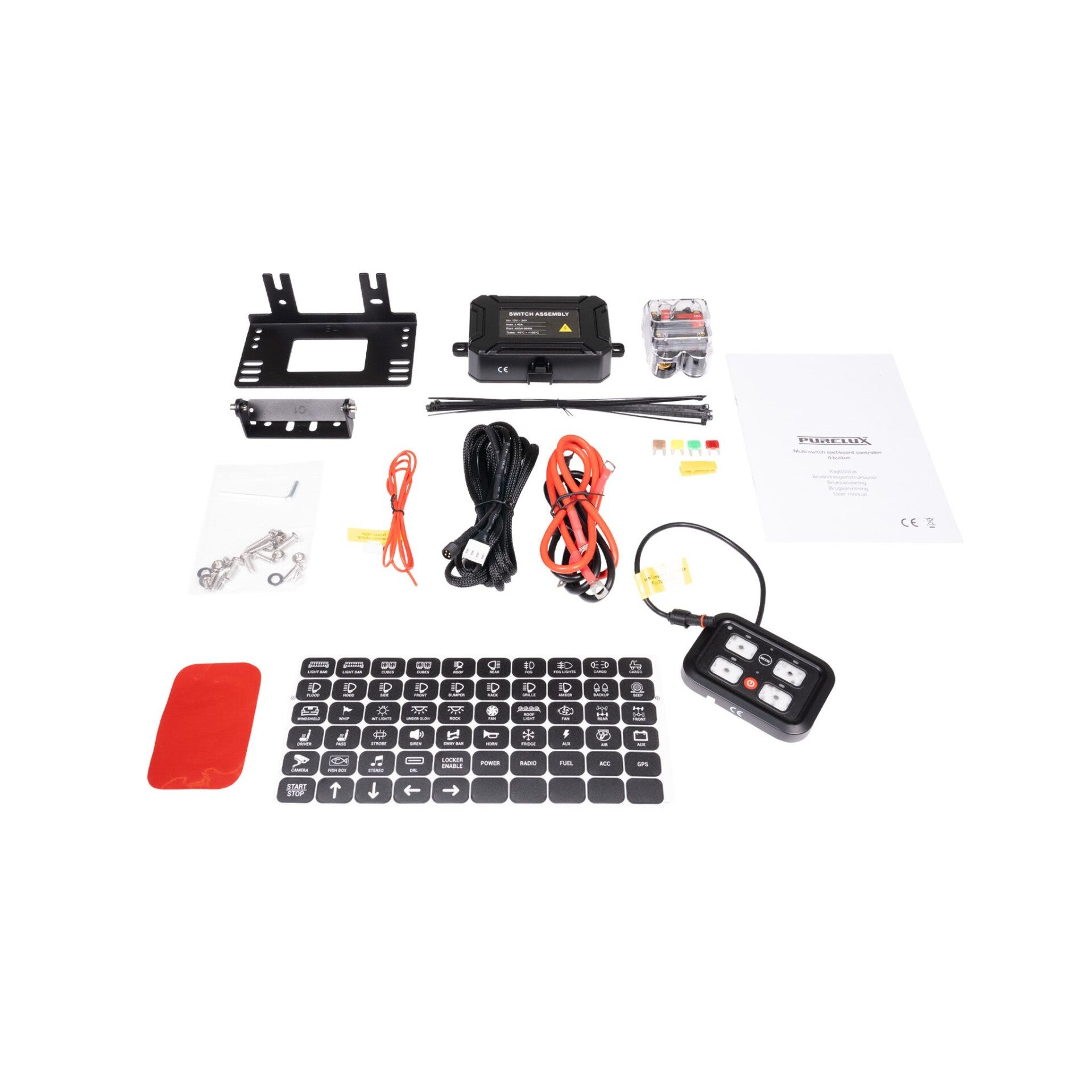

Delivery content

• Switch panel (4 switches)
• Fuse box
• Residual current protection (40A)
• 4-pole cable
• 2-pole cable
• Power cable
• 2 different fixing irons for the switch panel
• Fuse box fixing iron
• 50 labeling stickers for labeling buttons
• Screw set
• Ties
• Instructions for use
